Bagasse Paper Plate Container Tableware Thermoforming Machine
Product Descriptions:
1.This is a Semi Automatic Pulp Molding Tableware Production Line,
around 6~8 ton per day capacity.
2. This line could be improved to fully automatic by match additional robots.
3. The production line is constituted by a hydrapulper system, a
semi automatic thermoforming machine(forming/drying/pressing
integrative machine), and auxiliary equipments.
4. Can make table ware, catering ware, paper plate, pulp molded
plate, paper bowl, pulp molded bowl, food containers, cup holders,
saucers, food containers and etc.
5. Take sugarcane pulp or reeds pulp, straw pulp, bamboo pulp and
other clean paper pulp as raw material, 100% biodegradable.
Specifications:
Model Type | TS-10B |
| Mold Platen Size | 1100*800mm |
Capacity | 6~8 ton/day |
| Forming Machine Quantity | 10sets |
| Automation | Semiautomatic (Could be improved to fully automatic by match
additional robot) |
Workshop Required | ≥1000 m2 |
Electricity Consumption | 220 kw |
Electricity Installed | 380 kw |
| If Heat by Conduction Oil | Natural Gas: 60~90m³/h |
| Raw Material | bagasse pulp/bamboo pulp/straw pulp/wood pulp |
Material Consumption | 250~ 350 kg/h |
Water Consumption | 600 ~ 800 kg/h |
Worker Requirement | 22 persons |
Container Requirement for Shipment | 5 x 40’ HQ |
Forming Type | Vacuum suction, thermoforming |
Drying Method | Forming, drying and hot pressing in mold |
Forming Machine Photo:
Working Theory:
Pulping System: | Clean virgin paper will be made into pulp with certain
concentration through pulping screening, grinding and addition of
chemical agents.Including: pupler, grinder, pulp tank, water tank,
pulp pump, water pump, agitator, consistency and control cabinet. |
| Forming And Hot-Pressing System (with the function of forming,
drying, hot pressing and stacking): | The pulp is vacuumized into products on forming mold, then products
are transferred to hot pressing mold, after drying and hot pressing
processes; the products can be transferred and stacked by workers
or by robot arms. |
| Vacuum System: | Supply vacuum for forming machine. |
| Air Compressor System: | Supply compressed air for forming machine. |
| Cementing Machine & Laminating Machine: | Some products need coating, labeling, punching or printing, NANYA
can provide the corresponding machines. |
| Cutting System(Edge Trimming Machine): | Cutting the extra edges of products, to get more compact and neat
edge. |
| Disinfect System: | UV or microwave disfect, then go to package |
YOUTUBE Links:
Finished Products:
- Tableware, dinnerware, tableware, lunch box, plate, cups, bowl…
- For jewelre box, wine box, tea box, makeup box;
- For high-grade electronics products, tools, hardware etc and etc
- Artware, like Mask, Christmas balls, Easter Eggs , boutiques…

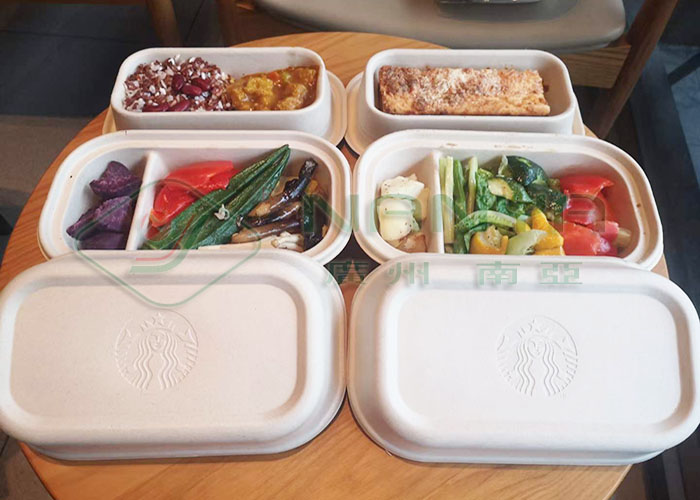

The below are products made by our machine, by changing moulds, the
machine can make different products.
Why NANYA is Your Best Partner?
Rich Experience: Established in 1994, With 30 years of experience, we will make
quotation and analysis based on customer’s investment and capacity.
Technology Guarantee: Combined with high and new technology with government institution
and South China University of Technology, with over 30 R&D
personnel;
Quality Guarantee: Life-long service, sustainable supply and upgrade machine and
parts. 1 year warranty( three-year warranty for mechanical parts
and main machine)
Wide Market: NANYA has more than 60% of the domestic demands, already exported
to over 50 countries and regions;
Strong Teams: Excellent engineers, sales and after sales service team brings the
best service to ensure long-term satisfaction for our customers.
Business Terms:
NO. | ITEM | DESCRIPTION |
1 | Payment Terms | Can accept T/T, L/C, Cash, or Western Union |
2 | Delivery Terms | FOB, CNF or CIF terms |
3 | Delivery Time | 60~75 days |
4 | Packages | Strong and Suitable for Marine Shipment |
5 | Installation | Supplier should appoint 1~2 engineers to instruct buyer in
installation, test-run and training |
6 | Warranty | Life-long service, sustainable supply and upgrade machine and
parts. 1 year warranty( three-year warranty for mechanical parts
and main machine) |
